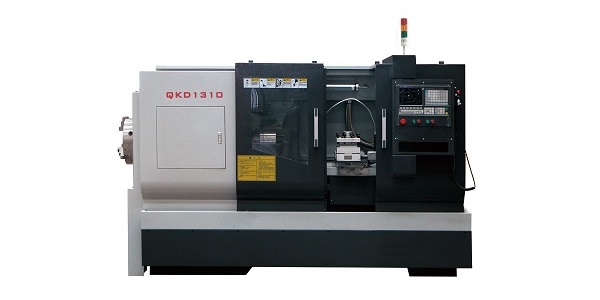

QKD1310

QK13 series CNC oil pipe lathe is mainly designed for processing internal and external pipe threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.

Main Features:
Big spindle bore and double chuck to ensure process big diameter pipe;
One-piece bed adopts high strength iron to ensure rigidity and precision;
Ultrasonic frequency quenched guide-ways ensure good wear-resistance;
Carriage and guide way contact surface use Turcite B to maintain accuracy;

SPECIFICATION OF YIMAKE CNC PIPE THREAD LATHE MACHINE
ITEMS UNIT MODEL QKD1310
Capacity Swing over bed mm Φ500
Swing over cross slide mm Φ270
Distance between centers mm 1000/1500/2000
Pipe threading range mm Φ10-100
Width of bed way mm 400
Max. load capacity T 1
Spindle Spindle bore mm Φ105
Spindle speed range rpm 3 steps/80-1000
Chuck size mm Φ325
Chuck type - 3-jaw manual
Turret Turret type - NC turret 4 position
Tool shank size mm 25×25
Carriage X axis travel mm 270
Z axis travel mm 850/1350/1850
X axis rapid traverse speed mm/min 4000
Z axis rapid traverse speed mm/min 6000
Tailstock Tailstock quill diameter mm Φ75
Tailstock quill taper - MT5
Tailstock quill travel mm 150
Motors Main spindle motor kW 7.5
Coolant pump motor kW 0.125
Accuracy Positioning accuracy mm 0.020
Repositioning accuracy mm 0.010
Dimensions Width x Height mm 1650×1700
Length mm 2950/3450/3950
Weight Net weight T 2.7/3.0/3.3
